IVY Electromagnetic General Purpose 100A Protective Latch Relay for
Smart Meter
Notes: Magnetic latching relay are usually with rated or nominal
voltage of 250VAC, rated current can be 32A to 200A.
For this 100A latching relay are commonly used in Russia and
Ukraine. What's more required UC2/UC3 are available here.
1. Main Features:
● Latching relay, 100A switching capability
● Impulse control within a short time, low power
● The contact can stand 2200A for 10ms
● Conforms to State Grid anti strong magnetic requirements
● 4kV dielectric strength between coil and contact
● Single or Double coils can be choose
● Environmental friendly product RoHS compliant
2.Technical Parameters:
| Main Parameters |
| Rated Load | 100A 250VAC |
| Contact Form | 1A/B |
| Contact Material | AgSnO2 |
| Max. Switching Voltage | 277VAC |
| Max. Switching Current | 100A |
| Max. Switching Power | 27700VA |
| Contact Resistance | <2mΩ |
| Pick-up Time | 20ms |
| Release Time | 20ms |
| Electrical Endurance | 5000 Cycles |
| Mechanical Endurance | 100000 Cycles |
| Temp.Rise | ≤55K When Ambient 40℃ |
| Other Parameters |
| Insulation Resistance | 1000MΩ(DC 500V) |
| Dielectric Strength: |
| Coil to Contact | 6000VAC,50/60Hz,1Min. |
| Across Open Contact | 1500VAC,50/60Hz,1Min. |
| Contact Gap | 0.45mm Gap Min |
| Ambient Temperature | -40OC~70OC |
| Ambient Humidity | 45%~95%RH |
| Vibration | 1.5mm(DA),10 ~ 55Hz |
| Shock Resistance: |
| Functional | 10G(100m/s2) |
| Destructive | 100G(1000m/s2) |
| Surge Immunity | 2200A/10ms |
| Dielectric Creepage | 10mm |
3.Dimention & Package

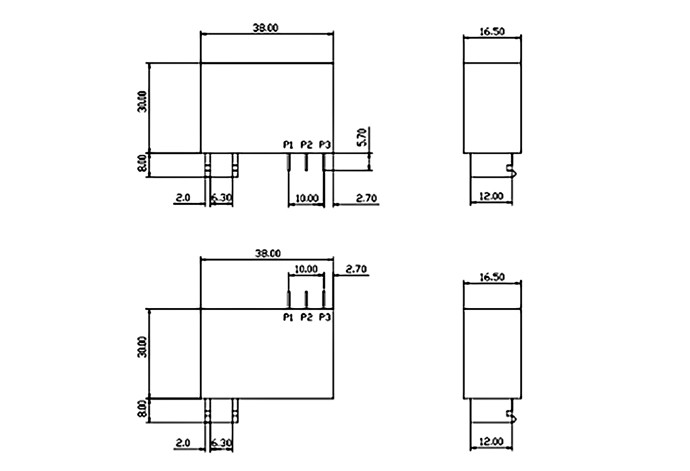

Dimension of product:
