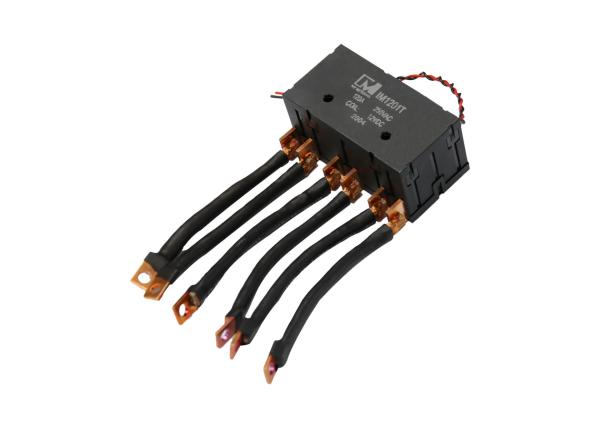

1P 2P 3 Phases Bistable DC Latching Relay For Switching Cabinet
Notes:Mechanical latching relays use a locking mechanism to hold
their contacts in their last set position until commanded to change
state, usually by means of energizing a second coil. Since the
relay does not rely on a magnet, the locking strength will not
degrade over time or weaken during thermal cycling.
1.Overview:
● CT Assembled, Max.Switching Current: 120A
● Rated Coil Consumption:3.0/6W(30ms)
● Dimension:78.6*40.3*37.8mm
● Anti-shock, Reliable, Environment-friendly
● Widely used for smart meter,smart grid,solar panel,EV
charger,switching cabinet,RCCB/RMB,lighting systerm
circuit protection,electrical machine
2.Specification:
| Dimension(mm) | 78.6×40.3×37.8 |
| Weight ( g ) | TBD |
| Contact Arrangement | 3A/3B |
| Contact Material | AuAg |
| Ambient Temperature | -40~+70℃ |
| Ambient Humidity | TBD |
| Vibration | 10~55Hz,1.5mm(DA) |
| Nominal Voltage | 5~48VDC |
| Power Consumption | Single Coil:3.0W, Dual Coil:6W |
| Max. Switching Voltage | 250VAC |
| Max. Switching Current | 120A |
| Max. Switching Power | 30000 VA |
| Contact Resistance | <2.0 mΩ |
| Insulation Resistance | 1000MΩ(DC 500V) |
| Dielectric Creepage | 8mm |
| Dielectric Strength | Across Open Contact | ＞2000VAC 1min |
| Coil to Contact | ＞4000VAC 1min |
| Electrical Life | ＞10,000cycles |
| Mechanical Life | ＞100,000cycles |
| Picking-up & Release Time | ≦0ms |
| Pulse Duration | ≧100ms |
| Functional Shock Resistance | 10G |
| Destructive Shock Resistance | 100G |
3.Application Notes:
3.1. Suggestions of relay’s input
(1) Polarity-Please check the polarity inside of our technical
specification, if single coil then”+ -” or “- +”are fine, you can
change it by one pulse.
If double coil then it‘s necessary to confirm “-+-” or “+-+“before
leaving the our factory.
(2) Driving-Please energize the relay at our recommend pulse width,
rated voltage for reliable performance,
if 1.5 time or 2 times of value or lower driving condition plz
confirm with our engineer.
(3) Relays’contact status may be changed during transportation or
installation due to impact of external force, therefore please
reset to the required status.
3.2 Suggestions of relay’s output
(1) When choosing the relay with hard connection,please avoid the
external force on load terminals during or after the installation.
(2) When the relay will be connected with screw or bolts to the
relays’ terminals,
plz make sure your connection is fastened and prevent relay from
damages or other safety problems due to temp. Rise..
(3) The sampling signal wires of products are limited, please do
not pull or torque during installation.
