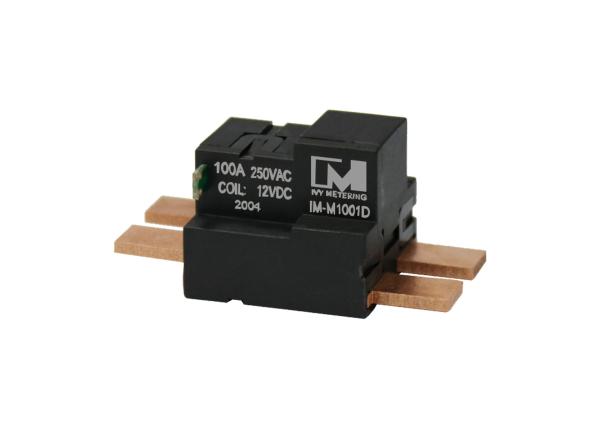

12VDC Miniature 80A Protective Latch Relay For Meter Instrument
Notes:Relay assembly means not only a core relay. but you choose to
integrated relay and ct, relay and shunt, relay current transformer
and shunt etc.
This 80A 2 pole latching relay with some successful case of relay
with ct assembly
1.Main Features:
● Max Switching Current 100A
● Power Consumption: 2W(65ms)
● Dielectric Strength of 4kV
● Cost Efficiency & Surge Protection
● Compact Size:29*25*27.1mm
● External Permanent Immunity to 500mT
● RoHS Compliant Materials and Process
● Short Circuit per IEC 62055-31 UC2/UC3 Certificate
● Custom Assemblies with Integrated Shunts, Flex-wire and Copper
Extensions and Brass Terminals
● Wide Application for Energy Meter,RCCB, EV Charger, IOT Device
2.Technical Parameters:
Basic Date |
| Dimension (mm) | 29*25*27.1 |
| Weight | ≈80g |
| Contact Form | 2A/2B |
| Contact Material | AgSnO2 |
| Ambient Temperature | -45~+85℃ |
| Vibration | 0.075mm(DA),10~50Hz |
| Shock | 1000m/s²,(100G) |
Specifications Date |
| Nominal Voltage | 12VDC |
| Power Consumption | ＜2W |
| Operating Voltage | 7.2V |
| Max. Motor Voltage | 24V |
| Max. Switching Current | 100A |
Surge Immunity | 6000A/10ms |
| Motor Resistance(R±15%) | 30Ω |
| Contact Rating(Res) | 250VAC,100A |
| Contact Voltage | 60mV |
| Contact Resistance | 0.6mΩ |
| Dielectric Strength | Micro-motor to contact | ＞4000VAC,1 Min |
| Across open contact | ＞2000VAC,1 Min |
| Electrical Endurance | ＞1x10,000 Cycles |
| Mechanical Endurance | ＞1x100,000 Cycles |
| Pulse Time | 40ms~60ms |
| Pick-up Time | 65ms |
| Release Time | 65ms |
| Dielectric Creepage | 10mm |
| Insulation Resistance | ＞1000MΩ(500VDC) |
3.Dimention & Package
Dimension of product:
Note:Due to the difference of relay design, we are now displaying
naked body (core relay)
Packages:
Samples (small quantity): we default to use IVY box (Ref
Size:25*20*7cm)
Shipments (large quantity): package can be self-defined based on
our rich experience, box-carton-pallet.
We also adopt the skin packing to protect the pins and state of
relays.
Marks on carton, or documents can be negotiated based on custom's
requirements.
Fillers:For filler we will use foam, bubble material, high end PE
form.
Others:
We have zip code on the products if any quality accidents, we will
call back and tracking the production.
Welcome to contact us if you have any feedback on our packages,
once we adopted your suggestion we can offer free samples or
discount.
