Long Service Life 200A Bistable Latching Relay For Panel Energy
Meters
Notes:Bistable relay, monostable relay are frequently asked by the
customers.
Monostable relay is power relay, which can not keep the status
unless you press the button and change state time by time.
Bistable relay is latching relay, holding relay, self-lock relay
which can keep the status till you change the state again.
Bistable relay means energy-saving hence it's popullar for energy
management.
1.Main Features:
● Max Switching Current 200A
● Power Consumption:1.5W(65ms)
● Dielectric Strength of 4kV
● Cost Efficiency & Surge Protection
● Compact Size:79.5×54×26mm
● External Permanent Immunity to 500mT
● RoHS Compliant Materials and Process
● Short Circuit per IEC 62055-31 UC2/UC3 Certificate
● Custom Assemblies with Integrated Shunts, Flex-wire and Copper
Extensions and Brass Terminals
● Wide Application for Energy Meter,RCCB, EV Charger, IOT Device
2.Technical Parameters:
Basic Data |
| Dimension(mm) | 79.5×54×26 |
| Weight | 208g |
| Ambient Temperature | -45~+85℃ |
| Ambient Humidity | / |
| Contact Material | AgSnO2 |
| Contact Form | 2A/2B |
| Contact Resistance | ＜0.6mΩ |
| Contact Voltage | ＜60mV |
| Contact Load | 250VAC,200A |
| Max. Switching Current | 200A |
| Electrical Endurance | ＞10000 |
| Mechanical Endurance | ＞100000 |
Function Parameter |
| Operating Voltage | 16V |
| Nominal Voltage | 16VDC |
| Max. Motor Voltage | 48V |
| Motor Resistance(R±20%) | 55Ω |
| Power Consumption | ＜1.5W |
| Vibration | 10~50Hz,0.75mm |
| Surge Immunity | 3000A/10ms |
| Insulation Resistance | ＞1000MΩ(500VDC) |
| Contact Spacing | ≥0.8mm |
| Dielectric Strength | Micro-motor to contact | ＞4000VAC 1min |
| Across open contacts | ＞2000VAC 1min |
| Shock | 1000m/s²,(100g) |
| Pulse Time | 100ms~150ms |
3.Dimention & Package

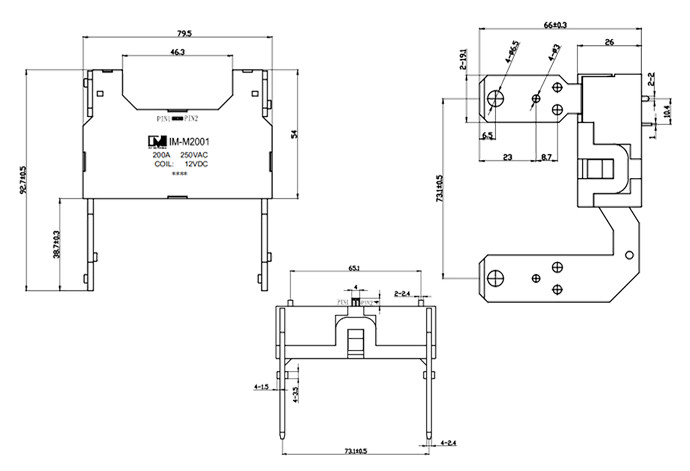

Dimension of product:
Note:Due to the difference of relay design, we are now displaying
naked body (core relay)
Packages:
