Low Power Consumption Brands 140A Current Relay For New Energy
Field
Notes: Motor latching relay, also named magnetic immune latching
relay, magnetic immunity latching relay, anti-magnetic relay etc.
It's a kind of latching relay which drived by motor and
self-equipped 500mT permanent magnetic immunity.
1.Main Features:
● Max Switching Current 140A
● Power Consumption:1.5W(65ms)
● Dielectric Strength of 4kV
● Cost Efficiency & Surge Protection
● Compact Size:36*36*25mm
● External Permanent Immunity to 500mT
● RoHS Compliant Materials and Process
● Short Circuit per IEC 62055-31 UC2/UC3 Certificate
● Custom Assemblies with Integrated Shunts, Flex-wire and Copper
Extensions and Brass Terminals
● Wide Application for Energy Meter,RCCB, EV Charger, IOT Device
2.Technical Parameters:
Basic Data |
| Dimension (mm) | 36*36*25 |
| Weight | 120g |
| Contact Form | 1A/1B |
| Contact Material | AgSnO2 |
| Ambient Temperature | -45~+85℃ |
| Vibration | 0.75mm(DA),10 to 50Hz |
| Shock | 1000m/s²,(100G) |
Specifications Data |
| Nominal Voltage | 12VDC |
| Power Consumption | ＜1.5W |
| Operating Voltage | 7.2V |
| Max. Motor Voltage | 36V |
| Max. Switching Current | 140 A |
| Surge Immunity | 3000A/10ms |
| Motor Resistance(R±20%) | 60Ω |
| Contact Rating(Res) | 250VAC,140A |
| Contact Voltage | ＜60mV |
| Contact Resistance | ＜0.6mΩ |
| Dielectric Strength | Micro-motor to contact | ＞4000VAC,1 Min |
| Across open contacts | ＞2000VAC,1 Min |
| Electrical Endurance | ＞10,000 Cycles |
| Mechanical Endurance | ＞100,000 Cycles |
| Pulse Time | 100ms~150ms |
| Pick-up Time | ＜65ms |
| Release Time | ＜65ms |
| Dielectric Creepage | 10mm |
| Insulation Resistance | ＞1000MΩ(500VDC) |
3.Dimention & Package

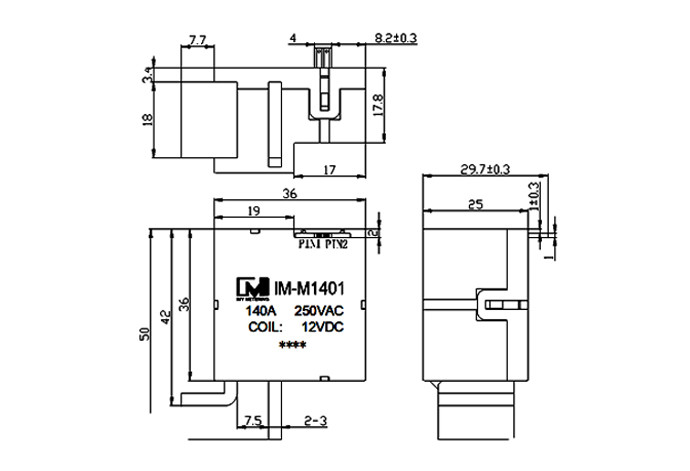

Dimension of product:
