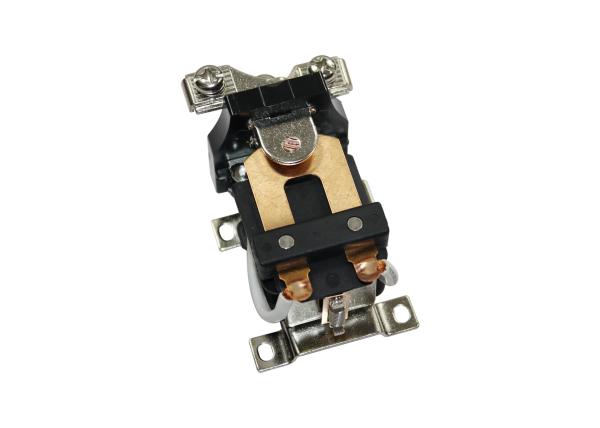

WJ178-1C JQX-40 Screw 50A 30VDC Electrical Power Relay for Heaters
1.Main Features:
● Product Number: WJ178-1C JQX-40
● Coil Voltage: DC:6~220V ; AC:6~220V
● Contact Load: 50A 250VAC/28VDC
● Appearance Dimension: 72.0×40.0×46.0mm
● Single Pole Conversion
● Strong Resistance, High Reliability
● Complying with IEC255 & GB8898 Standard
2.Technical Parameters:
| Basic Parameters |
| Contact Arrangement | 1A,1B,1C |
| Contact Material | Silver Alloy |
| Contact Resistance | Max.50mΩ |
| Rated Load | 50A 250VAC |
| 50A 28VDC |
| Max. Switching Voltage | 28VDC/250VAC |
| Max. Switching Current | 50A |
| Max. Switching Power | 1400W/12500VA |
| Electrical Life | 2×104 |
| Mechanical Life | 1×107 |
| Coil power consumption | (DC) | 3.0W |
| (AC) | 5.5VA |
| Coil Voltage | (DC) | 6～220VDC |
| (AC) | 6～220VAC |
| Other Parameters |
| Pick-up Time | Max.25ms |
| Release Time | Max.25ms |
Dielectric Strength | Coil Contacts | 2000VAC ,(50/60Hz), 1 min. |
| Open Contacts | 1500VAC ,(50/60Hz), 1 min. |
| Insulation Resistance | Min. 1000MΩ (500 VDC) |
| Environment Temperature | -40℃～+55℃ |
| Operation Humidity | 45%~85% RH |
| Shock Resistance | Functional | Min. 10G |
| Destructive | Min. 100G |
| Anti-vibration | Functional | 1.5mm(DA)10~55 Hz |
| Destructive | 1.5mm(DA)10~55 Hz |
| Weight | ≈150g |
3.Dimention & Package
Dimension of product:
Packages:
Samples (small quantity): we default to use IVY box (Ref
Size:25*20*7cm)
Shipments (large quantity): package can be self-defined based on
our rich experience, box-carton-pallet.
We also adopt the skin packing to protect the pins and state of
relays.
Marks on carton, or documents can be negotiated based on custom's
requirements.
Fillers:For filler we will use foam, bubble material, high end PE
form.
Others:
We have zip code on the products if any quality accidents, we will
call back and tracking the production.
Welcome to contact us if you have any feedback on our packages,
once we adopted your suggestion we can offer free samples or
discount.
